JGX-0648A-68A Wire Rope Vibration Isolator for Electronic Devices Mechanical Equipment and Instruments

Product Categories
Xi'an Hoan Microwave Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

JGX-0648A-68A Wire Rope Vibration Isolator for Electronic Devices Mechanical Equipment and Instruments

  • 1
  • 2
  • 3

Brand Name : Hoan

Model Number : JGX-0648A-68A

Certification : ISO9001:2015

Place of Origin : China

MOQ : 4 piences

Payment Terms : L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability : 4，pience，7

Delivery Time : 7

After Warranty Service : Online support

Relative Product : Backdraft Damper

Vibration Isolation : Up to 90%

Shock Resistance : 40g/11ms

Installation Method : Screw Mounting

Corrosion Resistance : Yes

Mounting Thread Size : M6

Product Certification : ISO 9001

Compact Design : Yes

Maintenance : Low

High : 64mm

Installation : Wall Mounted

Warranty : 1 Year

Design Style : Industrial

Contact Now

JGX-0648A Series
The JGX-0648 series of wire rope vibration isolators by Xi'an Hoan Microwave Co., Ltd. possess remarkable technical advantages. Take the JGX-0648A-30A model as an example. This product is formed through a winding process using a 6.4mm-diameter wire rope. Leveraging the characteristics of wire rope elastic elements, it achieves efficient nonlinear dynamic response and dry friction damping effects through the mechanisms of friction, extrusion, and slippage among the wires.

In the aerospace field, this series of vibration isolators has been widely applied in the transportation, navigation, and launch systems of missiles and satellites, providing highly reliable vibration protection solutions for critical equipment. In the industrial sector, they are adaptable to various power machinery and equipment. With their outstanding vibration isolation and noise reduction performance, they effectively suppress vibrations and noise generated during equipment operation.

The series encompasses a wide range of specifications and models. It can be customized to match vibration isolation solutions according to different equipment parameters and complex application environments, providing a solid guarantee for the stable operation of equipment.

JGX-0648A-68A Wire Rope Vibration Isolator for Electronic Devices Mechanical Equipment and Instruments

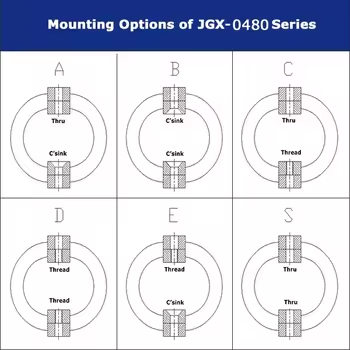

Mounting Options

JGX-0648A-68A Wire Rope Vibration Isolator for Electronic Devices Mechanical Equipment and Instruments



SIZE PARAMETER:

Model “H”±3.30 “W” Unit weight Mounting options Thru hole(mm) Thread(mm) Csink(℃)
JGX-0648D-79A 48 56 0.456 A,B,C,D,E,S ∅6.9±0.13 M6×1.0 90
JGX-0648D-68A 54 64 0.492
JGX-0648D-56A 59 71 0.516
JGX-0648D-45A 64 80 0.564
JGX-0648D-39A 64 89 0.832
JGX-0648D-36A 67 95 0.864
JGX-0648D-33A 67 100 0.684
JGX-0648D-30A 83 108 0.708


Technical Data Sheet:

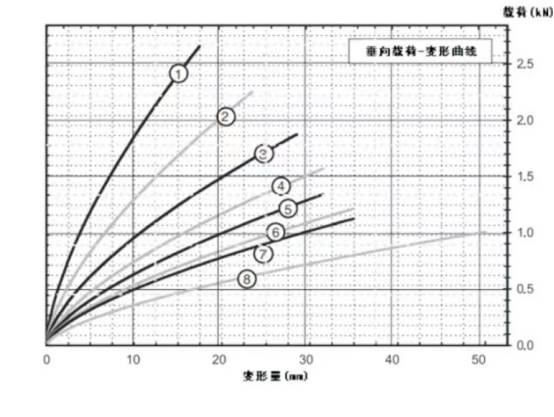

Vertical load

JGX-0648A-68A Wire Rope Vibration Isolator for Electronic Devices Mechanical Equipment and Instruments
Curve number Model Maximum static load(N) Maximum deformation(mm)

Vibration stiffness

(KN/m)

 Impact stiffness(KN/m)
1 JGX-0648D-79A 79 17.8 382 182
2 JGX-0648D-68A 68 23.9 266 116
3 JGX-0648D-56A 56 29.0 196 79
4 JGX-0648D-45A 45 32.0 151 60
5 JGX-0648D-39A 39 32.0 127 51
6 JGX-0648D-36A 36 35.6 109 42
7 JGX-0648D-33A 33 35.6 100 39
8 JGX-0648D-30A 30 50.8 74 25

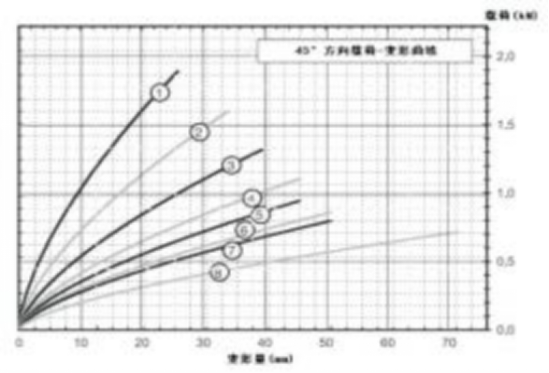

45 ° directional load:

JGX-0648A-68A Wire Rope Vibration Isolator for Electronic Devices Mechanical Equipment and Instruments


Curve number Model Maximum static load(N) Maximum deformation(mm) Vibration stiffness(KN/m) Impact stiffness(KN/m)
1 JGX-0648D-79A 56.7 25.9 215 89
2 JGX-0648D-68A 47.7 34.0 151 58
3 JGX-0648D-56A 39.8 39.6 109 40
4 JGX-0648D-45A 32.8 45.7 86 30
5 JGX-0648D-39A 27.9 45.7 72 25
6 JGX-0648D-36A 25.3 50.8 61 21
7 JGX-0648D-33A 23.4 50.8 56 19
8 JGX-0648D-30A 21.3 71.6 41 12


Lateral load:

JGX-0648A-68A Wire Rope Vibration Isolator for Electronic Devices Mechanical Equipment and Instruments


Curve number Model Maximum static load(N) Maximum static load(N) Vibration stiffness(KN/m) Impact stiffness(KN/m)
1 JGX-0648D-79A 43.2 18.8 110 110
2 JGX-0648D-68A 36.3 24.9 72 72
3 JGX-0648D-56A 31.7 30.0 49 49
4 JGX-0648D-45A 25.0 34.0 37 37
5 JGX-0648D-39A 22.7 34.0 32 32
6 JGX-0648D-36A 20.4 38.1 25 25
7 JGX-0648D-33A 18.2 38.1 23 23
8 JGX-0648D-30A 15.9 52.8 16 16

* Unique Characteristics of Xi'an Hoan's Vibration Isolators *
* No creep or ageing.
* High internal damping.
* Very wide temperature range.
* Wide variety of possible fittings.
* Rapid and economical prototyping.
* Extremely rugged construction and long lifespan.
* Excellent combined shock and vibration isolation.
* Not affected by chemical agents, seawater, ozone, UV rays


Product Tags:

Electronic Devices Wire Rope Vibration Isolator



Mechanical Equipment Wire Rope Vibration Isolator
